Pile Integrity Test equipment PET by Piletest

PET

Pile Echo Tester

PET is used to test the integrity of deep pile foundations. PET Uses the pulse-echo method (PEM) for pile integrity testing (PIT). A pile test starts when the pile top is struck with a hammer, and the PET accelerometer records the reflected waves, which are displayed as a reflectogram.

  • Smart Trigger for ease of use

  • Automatic Impulse sorting

  • ASTM D5882-16, AFNOR P160-2,4

  • Rugged and IP68 waterproof

Applications

This is the primary method used in the industry for a quick pile integrity test to control the quality of piles on a site. This simple and fast test method makes it practical to test 100% of the piles, even on sites with many piles.

Rugged and Easy to Use Pile Integrity Test Equipment

Piletest Reliable System icon

Reliable

  • Specially designed and tested for a hostile construction environment.

  • IP68 (Protection against complete, continuous submersion in water).

  • 3 years warranty!

  • 10 years of free software

Piletest system Ease of Use icon

Easy to Use

  • Usually, no training is needed, and the system can be self-taught in a few hours. (No expensive training days)

  • Unique Smart Trigger for fast & easy quality results.

Piletest System performance icon

Top Performance

  • Up to 100 piles/hour can be tested.

  • Very low noise level extends the usual limits of the pile integrity test method to longer piles.

  • Automatic Impulse sorting

PET USB - Technical Specifications

Physical

Housing

Dimentions
Weight

Temprture range

Waterproofing
Industrial grade transducer enclosed in a durable stainless steel and aluminum housing
30 mm (diameter) x 90 mm (Length)

120gr     (Transducer)

2.3kg     (Shipping)

-20°C to +55°C  (Operating)

-40°C to +80°C  (Storage)

IP67 (Protection against submersion in water)

Transducer

Sensitivity

Linearity

Resonance frequency

Sampling frequency

Sampling resolution

100mV/g

Within 1%, 0 to 50g

30kHz

50kHz

24bit

Standards

ASTM D5882-16

AFNOR P160-2,4

CE

Meets or exceeds



In conformity to all the essential requirements of CE EMC & Safety requirements Directive 2014/30/EU and Low Voltage Directive LVD 2014/35/EU

Technical Features

Trigger

Smart Trigger

Auto sort

Pile Averaging

Site Averaging

Variable trigger level

Trigger by impulse shape

Automatic sorting of best impacts

Averaging all good impacts -

Clears the noise from the reflectogram

Average between several piles reflecting site conditions

Performance

Pile lengths



Productivity



Max cable length

Max record impulse

Resolution

Storage

2m to 80m
(depending on diameter and soil profile. )

Up to 100 piles/hour by a single operator
under favorable conditions

Up to 4m with cable extension (2m extension included)

100ms

16bit

Upto 1Tera byte

Requirements

Computer

(Not included )

Windows Win7/Win10/Win11.

800x600  resolution or better

USB port

Recommended: Tablet PC (outdoor display)

Output

Reporting



Language

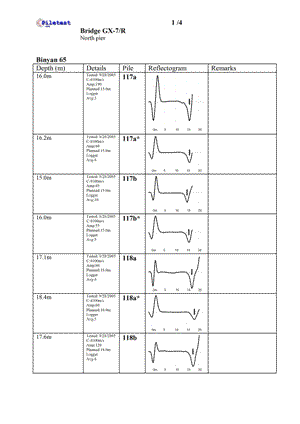

Time/Distance Reflectogram

FFT analysis - Standard

Multi-lingual user interface and reporting

Power

USB cable

Powered by the attached Computer/Tablet
No power limits when used with a replaceable battery computer, or backup computer/tablet.

Pile Integrity Test equipment PET USB from Piletest

PET Bluetooth (wireless) - Technical Specifications

Physical

Housing

Dimentions
Weight

Temprture range

Waterproofing
Industrial grade transducer enclosed in a durable stainless steel and aluminum housing
34 mm (diameter) x 120 mm (Length)

155gr     (Transducer)

3kg     (Shipping)

-20°C to +55°C  (Operating)

-40°C to +80°C  (Storage)

IP67 (Protection against submersion in water)

Transducer

Sensitivity

Linearity

Resonance frequency

Sampling frequency

Sampling resolution

100mV/g

Within 1%, 0 to 50g

30kHz

50kHz

16bit

Standards

ASTM D5882-16

AFNOR P160-2,4

CE

Meets or exceeds



In conformity to all the essential requirements of RED 2014/53/EU

Technical Features

Triger

Smart Trigger

Auto sort

Pile Averaging

Site Averaging

Variable trigger level

Trigger by impulse shape

Automatic sorting of best impacts

Averaging all good impacts -

Clears the noise from the reflectogram

Average between several piles reflecting site conditions

Performance

Pile lengths



Productivity



Wireless range

Max record impulse

Resolution

Storage

2m to 80m
(depending on diameter and soil profile. )

Up to 100 piles/hour by a single operator
under favorable conditions

Up to 10m between the transducer and the Android device

100ms

24bit

Upto 1Tera byte

Requirements

Computer

(Not included )

Windows Win7/Win10/Win11.

800x600  resolution or better

Bluetooth suport

Recommended: Android Smartphone or Tablet  (outdoor display)

Output

Reporting



Language

Time/Distance Reflectogram

FFT analysis - Standrad

Multi-lingual user-interface and reporting

AAA Battaries

2 X AAA Alkaline batteries, 3V total. Sufficient for testing approximately 300 piles. Easily replaceable in the field.

Power

Pile Intgerity Test equipment PET Bluetooth from Piletest
