When Should You Choose CSL Over PIT for Deep Foundations?

Introduction to PIT and CSL

In the world of deep foundation engineering, ensuring the integrity of piles is critical. Two widely used non-destructive testing methods are PIT (Pile Integrity Testing) and CSL (Crosshole Sonic Logging). These techniques help detect flaws like cracks, voids, or inclusions within the concrete, especially before construction progresses further.

But here's the question: When should you use CSL instead of PIT?

Both have their place—but understanding the pros, cons, and ideal scenarios for each can save time, money, and even prevent catastrophic structural issues.

Let's break it down in simple terms.

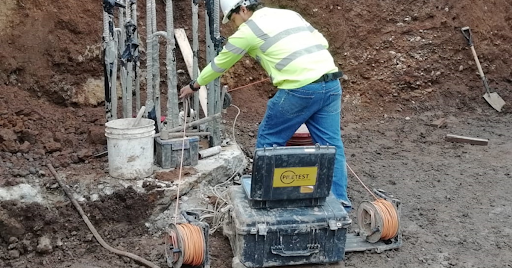

CSL test on site. With CHUM, one person can easily handle the test, which reduces costs.

How PIT Works

Equipment and Site Preparation

PIT is simple to set up. All you need is a sensor placed on the top of the pile and a handheld hammer. The test involves lightly tapping the pile and recording the sound waves that travel through the pile and bounce back.

It's fast, cost-effective, and doesn't require preinstalled access tubes.

Data Acquisition Process

When the hammer hits the pile head, it generates a stress wave that travels through the pile. If the pile has defects or changes in material, the wave reflects at different times, which the equipment records and displays for interpretation as a reflectogram.

Advantages & Limitations

PIT is great when you need a quick, low-cost integrity check—especially for small piles or preliminary testing. However, it falls short when:

• The pile is slender or very deep.

• High accuracy is needed.

• Subtle or deep flaws must be detected and well-defined.

How CSL Works

Tube Requirements and Setup

CSL testing requires steel or PVC tubes to be installed inside the pile before the concrete is poured. These tubes allow ultrasonic transmitters and receivers to be lowered into the pile to measure the time it takes for sound waves to travel between them.

Cross‑Hole Data Capture

Multiple access tubes enable sonic sensors to be placed at multiple points across the diameter of the pile, rather than just reflecting back from the defect or the bottom of the pile foundation. This "cross-hole" method offers high-resolution data, even in complex or challenging concrete pours. CSL can also test pile walls and secant walls.

Quality and Reliability

CSL is far superior when it comes to accurately locating and sizing defects throughout the full pile depth. It's less affected by pile dimensions, soil conditions, or surface quality, and works exceptionally well for large piles.

Defect Detection Capabilities

When it comes to defect detection, PIT can catch large flaws or obvious problems near the pile top. However, small or deep anomalies can slip through undetected, especially when multiple defects are present.

CSL, on the other hand, excels at identifying:

• Small voids

• Necking or inclusions

• Soft bottom

• Poor concrete zones

• Irregularities in rebar zones

This makes CSL a more dependable method for projects where failure isn't an option.

Comparing Accuracy and Reliability

Sensitivity to Defects

CSL can detect defects as small as a few centimeters. PIT often misses these, especially when the defects are obscured by other defects or concrete variability.

Soil and Material Influence

PIT's wave reflections are affected by the surrounding soil and the pile's surface condition. CSL is much more consistent since it tests inside the concrete.

Compliance with International Codes

PIT satisfies ASTM D5882, but for major infrastructure, international standards like ASTM D6760 often specify CSL due to its reliability.

Cost–Benefit Analysis

Upfront vs Long-Term Costs

Let's be honest—CSL costs more. It requires planning, equipment, and skilled operators. But it can save enormous repair or litigation costs later.

Here's a quick comparison:

Cost Factor	PIT	CSL
Equipment	Low	High
Installation	None	Requires access tubes
Accuracy	Medium	High
Time per pile	Fast	Moderate
Defect coverage	Partial	Full
Pile size & shape	Mid (non slender)	Any size and shape, including pile walls

When the Extra Cost Is Worth It

For bridges, offshore piles, high-rise foundations, or seismic regions, CSL is a small price to pay for long-term peace of mind.

Site Preparation Needs

PIT Requirements

Minimal prep. Just ensure access to the pile head and the concrete has cured for 7+ days.

CSL Requirements

You'll need to:

• Install tubes before pouring concrete.

• Secure and label tube ends at the pile top.

• Fill tubes with water before testing.

This extra effort pays off in data accuracy, but you must plan for it during the pile design and construction phases.

Applicable Standards and Codes

Here's a quick guide to major industry standards:

• PIT: ASTM D5882

• CSL: ASTM D6760, EN ISO 22475-4, AFNOR NF P 94-160-1

• CSL with tomography: Recommended for high-risk or complex piles

Engineers must also comply with national or local codes, which often specify the use of CSL for piles exceeding 30 meters in height or 1 meter in width.

International Practices and Trends

Global Usage

• U.S.: PIT popular, but CSL required for government or bridge projects.

• Europe: CSL is widely used and often mandated. PIT is common for small projects.

• Asia & Middle East: CSL is increasingly common due to large-scale infrastructure projects. PIT is common in small projects, and when CSL tubes were not preinstalled

Regional Preferences

Some regions combine both methods—PIT for screening, and CSL for validation of suspect piles.

Recommendations for Foundation Engineers

Before choosing your method, consider:

• Pile geometry and length

• Project criticality

• Cost constraints

• Site access and schedule

• National code requirements

Best Practice: Require that the foundation be tested for its integrity after it has been made

Test 100% of the piles.

If you're ever unsure, use PIT as a first pass, then follow up with CSL on questionable piles—or just plan for CSL from the start.

Final Thoughts

Choosing between PIT and CSL isn't just a technical decision—it's a strategic one. PIT is ideal for quick checks, while CSL is your go-to for in-depth, comprehensive, or high-stakes foundations.

For expert testing tools and software, visit Piletest.

FAQs

1. When is CSL preferred over PIT for foundation testing?

Choose CSL for large, high-load, or safety-critical piles needing detailed internal assessment.

2. Can PIT detect defects in concrete?

Yes, but only major or shallow defects. CSL goes deeper and detects smaller flaws.

3. Can PIT detect deep or small defects reliably?

Not always. PIT may miss deep flaws—CSL offers more precise internal imaging.

4. Do international codes require CSL?

Many major codes do, especially for critical or high-load structures.

5. What if site prep is minimal?

Go with PIT, but know that CSL won't be an option unless tubes were installed during pouring.
